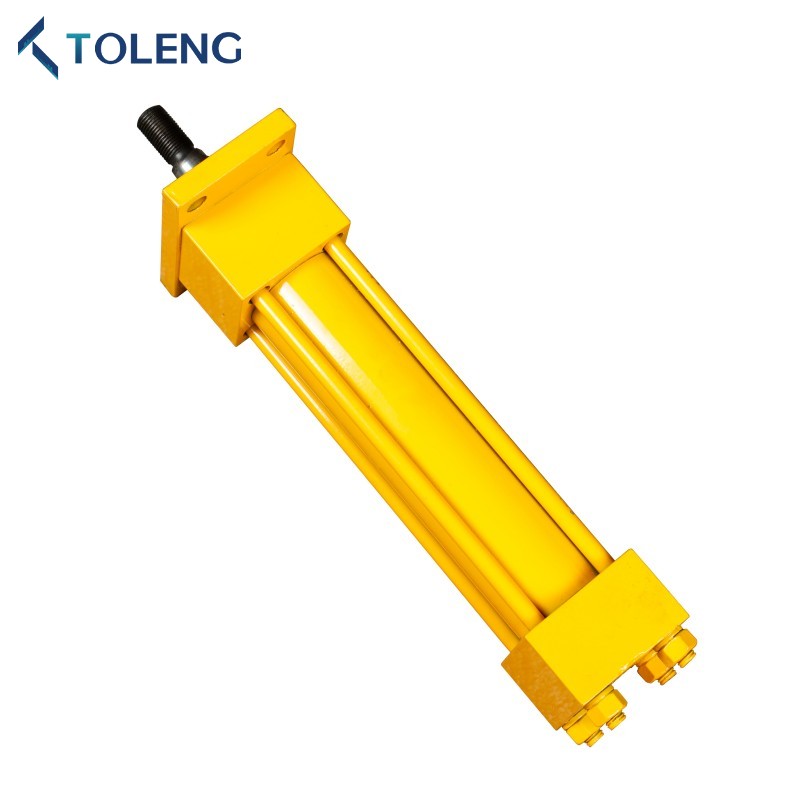

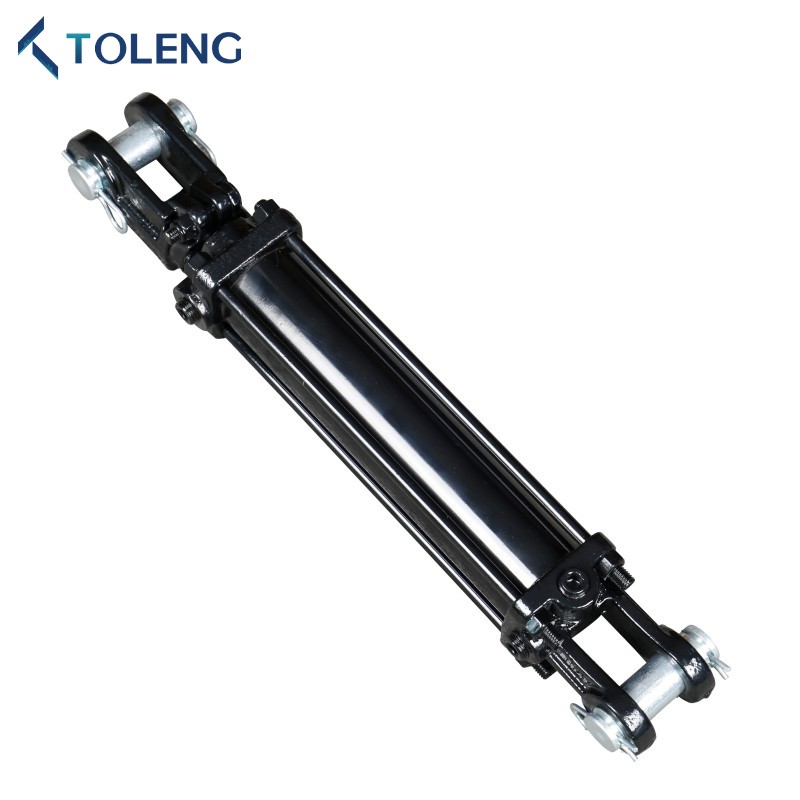

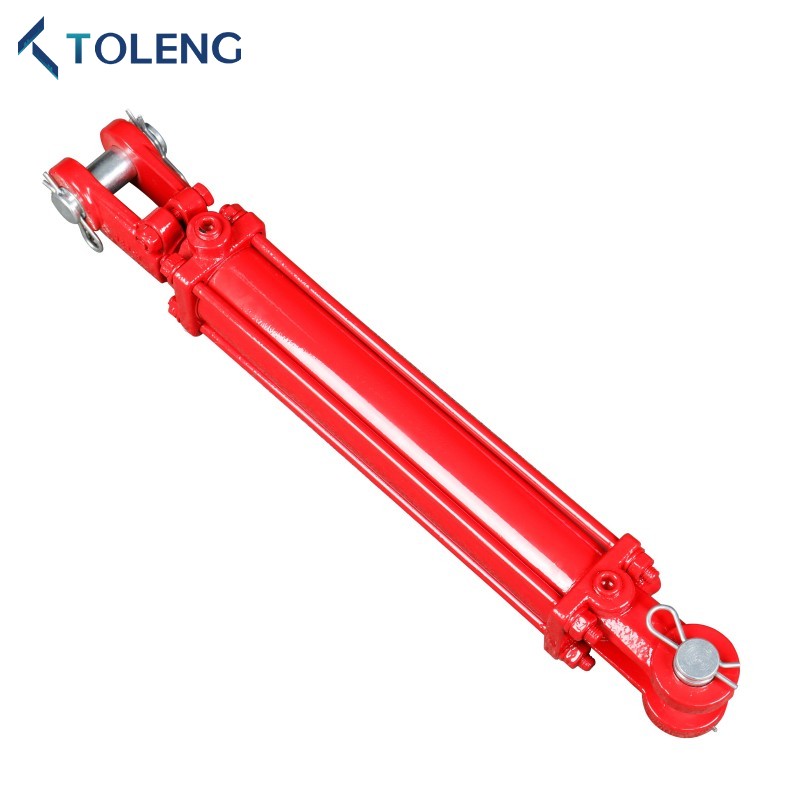

Standardit TR-sarjan tie-rod-hydraulisylinteri
Toleng on ammattimainen hydraulisylinterin valmistaja ja toimittaja Kiinassa. Olemme erikoistuneet hydraulisylinteriin tavanomaisten TR-sarjojen solmio-rod-hydraulisylinterille yli 20 vuoden ajan. Tuotteemme on viety kuluttajille ympäri maailmaa ja ne ovat saaneet hyvän maineen. Odotamme innolla pitkän aikavälin yrityskumppanuuden perustamista kanssasi.
Lähetä kysely
Tuotteen Kuvaus
Toleng Standard TR -sarja Tie-Rod-hydraulisylinteri on tärkeä komponentti maatalouden konekenttään, joka on tunnettu luotettavan ja tehokkaan suorituskyvyn suhteen. Se on suunniteltu huolellisesti tarkkuudella ja kestävyydellä, mikä takaa sujuvan erilaisissa maataloussovelluksissa. Tavallisessa TR-sarjassamme Solm-Rod-hydraulisylinterissä on erilaisia eritelmiä tiettyjen vaatimusten täyttämiseksi.
Standardin TR-sarjan tie-rod-hydraulisylinterisovellus
Toleng Standard TR -sarja Tie-Rod-hydraulisylinteri löytää laajan käytön pääasiassa maatalouskoneiden teollisuudessa. Sitä käytetään usein erilaisissa maatalouskoneissa, kuten traktorin kiinnikkeissä, yhdistämällä harvesterit, siementäjä jne.
Standardit TR-sarjan tie-rod-hydraulisylinterin spesifikaatio
1.Käytäntöä koskevat sovellukset
2.Tube: Korkealaatuinen hiottu/Skived Cold Drawn Pipe
3.Piston sauva: Korkea lujuus kovettunut, kova kromattu
4.Piston: Ductive -rauta
5.Tie-Rods: Korkea vetoketju
6.työpaine: 2500/3000 psi
7.Paint: Musta, vihreä, punainen, keltainen jne. Mukautettuja värejä on saatavana.
2.Tube: Korkealaatuinen hiottu/Skived Cold Drawn Pipe
3.Piston sauva: Korkea lujuus kovettunut, kova kromattu
4.Piston: Ductive -rauta
5.Tie-Rods: Korkea vetoketju
6.työpaine: 2500/3000 psi
7.Paint: Musta, vihreä, punainen, keltainen jne. Mukautettuja värejä on saatavana.
Standardit TR-sarjan tie-rod-hydraulisylinterin tekniset parametrit
| OSA MÄÄRÄ |
Sisäpiiriläinen HALKAISIJA |
ULKOPUOLINEN HALKAISIJA |
*A | B | *C | D | *E | F | *G | H | I | J | Sauva KIERRE |
Satama |
| TTR3-20- | 2,00 " | 2,50 " | 10.25 " | 2,00 " | 1,01 " | 2,00 " | 3,75 " | 2,25 " | 1,12 " | 2,06 " | 2,12 " | 2,62 " | 1,125-12 UNF | SAE#8 |
| TTR3-25- | 2,50 " | 3.00 " | 10.25 " | 2,00 " | 1,01 " | 2,00 " | 3,75 " | 2,25 " | 1,12 " | 2,06 " | 2,12 " | 2,62 " | 1,125-12 UNF | SAE#8 |
| TTR3-30- | 3.00 " | 3.50 " | 10.25 " | 2,25 " | 1,01 " | 2,25 " | 3,75 " | 2,25 " | 1,12 " | 2,06 " | 2,12 " | 2,62 " | 1,250-12 UNF | SAE#8 |
| TTR3-35- | 3.50 " | 4.00 " | 10.25 " | 2,50 " | 1,01 " | 2,50 " | 3,62 " | 2,50 " | 1,12 " | 2,06 " | 2,12 " | 2,75 " | 1,250-12 UNF | SAE#8 |
| TTR3-40- | 4.00 " | 4,50 " | 10.25 " | 2,50 " | 1,01 " | 2,50 " | 3,56 " | 2,62 " | 1,12 " | 2,06 " | 2,12 " | 2,75 " | 1,250-12 UNF | SAE#8 |
| TTR3-50-50 | 5.00 " | 5,50 " | 12.25 " | 2,87 " | 1,26 " | 2,75 " | 4.18 " | 3.50 " | 1,12 " | 2,25 " | 2,12 " | 3.31 " | 1,500-12 UNF | SAE#10 |
| *8,00 "ASAE -aivohalvauksessa:*A = 12,25" ja 16,00 "ASAE -aivohalvauksessa:*A = 15.50" | ||||||||||||||
| *8,00 "aivohalvaus:*E = 5,75" (2,00 " - 3,00" poraus)*e = 5,62 "(3,50" poraus)*e = 5,56 "(4,00" poraus) | ||||||||||||||
| *16,00 "ASAE -isku:*E = 9,00" (2,00 " - 3,00" poraus)*E = 8,87 "(3,50" poraus)*E = 8,81 "(4,00" poraus) = 7,43 "(5,00" Bore) | ||||||||||||||
| *5,00 "poraus:*g (etulevy) = 1,18"*g (päätykorkki) = 1,31 " | ||||||||||||||
| *FOR16.00 "ASAE STROKEA:*C = 126" | ||||||||||||||
| Tiivistelmälämpötila: -30 ℃/+100 ℃ (-22 "F/+212" F) | ||||||||||||||
| Tiivistä suurin nopeus: 3 jalkaa/s | ||||||||||||||
| Suurin sisäänvedetty työpaine = 3000 psi | ||||||||||||||
| Mitat *a ja *e ovat viitteitä vain, koska clevis on säädettävissä | ||||||||||||||
| Solmio-sylinteri | |||||||
| Osanumero | Sauva HALKAISIJA |
BORE& Sidos |
MITAT | Satamakoko | Nasta KOKO |
PAINO (Lbs) |
|
| Sisäänvedetty | Pidennetty | ||||||
| TTR30-2004 | 1-1/8 " | 2 "x4" | 14-1/4 " | 18-1/4 " | 3/8 "NPT & SAE#8 |
1 " | 16.8 |
| TTR30-2006 | 2 "x6" | 16-1/4 " | 22-1/4 " | 18.4 | |||
| TTR30-2008 | 2 "x8" | 18-1/4 " | 26-1/4 " | 20.0 | |||
| TTR30-2008-AASA | 2 "x8" | 20-1/4 " | 28-1/4 " | 20.5 | |||
| TTR30-2010 | 2 “x10” | 20-1/4 " | 30-1/4 " | 21.5 | |||
| TTR30-2012 | 2 "x12" | 22-1/4 " | 34-1/4 " | 23.1 | |||
| TTR30-2014 | 2 "x14" | 24-1/4 " | 38-1/4 " | 24.7 | |||
| TTR30-2016 | 2 "x16" | 26-1/4 " | 42-1/4 " | 26.3 | |||
| TTR30-2016-ASAAE | 2 "x16" | 31-1/4 " | 47-1/4 " | 26.9 | |||
| TTR30-2018 | 2 "x18" | 28-1/4 " | 46-1/4 " | 279 | |||
| TTR30-2020 | 2 "x20" | 30-1/4 " | 50-1/4 " | 29.5 | |||
| TTR30-2024 | 2 "x24" | 34-1/4 " | 58-1/4 " | 32.6 | |||
| TTR30-2030 | 2 "x30" | 40-1/4 " | 70-1/4 " | 37.4 | |||
| TTR30-2036 | 2 "x36" | 46-1/4 " | 82-1/4 " | 42.2 | |||
| TTR30-2040 | 2 "x40" | 50-1/4 " | 90-1/4 " | 45.3 | |||
| TTR30-2048 | 2 "x48" | 58-1/4 " | 106-1/4 " | 51.7 | |||
| TTR30-2504 | 1-1/4 " | 2,5 "x4" | 14-1/4 " | 18-1/4 " | 3/8 "NPT & SAE# |
1 " | 18.6 |
| TTR30-2506 | 2,5 "x6" | 16-1/4 " | 22-1/4 " | 20.9 | |||
| TTR30-2508 | 2,5 "x8" | 18-1/4 " | 26-1/4 " | 22.8 | |||
| TTR30-2508-ASAAE | 2,5 "x8" | 20-1/4 " | 28-1/4 " | 23.6 | |||
| TTR30-2510 | 2,5 "x10" | 20-1/4 " | 30-1/4 " | 25.5 | |||
| TTR30-2512 | 2,5 "x12" | 22-1/4 " | 34-1/4 " | 27.8 | |||
| TTR30-2514 | 2,5 "x14" | 24-1/4 " | 38-1/4 " | 30.2 | |||
| TTR30-2516 | 2,5 "x16" | 26-1/4 " | 42-1/4 " | 32.5 | |||
| TTR30-2516-AASA | 2,5 "x16" | 31-1/4 " | 47-1/4 " | 33.4 | |||
| TTR30-2518 | 2,5 "x18" | 28-1/4 " | 46-1/4 " | 34.8 | |||
| TTR30-2520 | 2,5 "x20" | 30-1/4 " | 50-1/4 " | 371 | |||
| TTR30-2524 | 2,5 "x24" | 34-1/4 " | 58-1/4 " | 41.8 | |||
| TTR30-2530 | 2,5 "x30" | 40-1/4 " | 70-1/4 " | 43.6 | |||
| TTR30-2536 | 2,5 "x36" " | 46-1/4 " | 82-1/4 " | 49.6 | |||
| TTR30-2540 | 2,5 "x40" | 50-1/4 " | 90-1/4 " | 53.7 | |||
| TTR30-2548 | 2,5 "x48" | 58-1/4 " | 106-1/4 " | 61.7 | |||
| Solmio-sylinteri | |||||||
| Osanumero | Sauva HALKAISIJA |
Poraus8 Sidos |
MITAT | Satamakoko | Nasta KOKO |
PAINO (Lbs) |
|
| Sisäänvedetty | Pidennetty | ||||||
| TTR30-3004 | 1-1/4 " | 3 "x4" | 14-1/4 " | 18-1/4 " | 1/2 "NPT & SAE#8 |
1 " | 22.1 |
| TTR30-3006 | 3 "x6" | 16-1/4 " | 22-1/4 " | 24.0 | |||
| TTR30-3008 | 3 "x8" | 18-1/4 " | 26-1/4 " | 26.1 | |||
| TTR30-3008-ASAE | 3 "x8" | 20-1/4 " | 28-1/4 " | 8.4 | |||
| TTR30-3010 | 3 “x10” | 20-1/4 " | 30-1/4 " | 28.2 | |||
| TTR30-3012 | 3 "x12" | 22-1/4 " | 34-1/4 " | 30.3 | |||
| TTR30-3014 | 3 "x14" | 24-1/4 " | 38-1/4 " | 32.4 | |||
| TTR30-3016 | 1-1/2 " | 3 "x16" | 26-1/4 " | 42-1/4 " | 38.7 | ||
| TTR30-3016-AASA | 3 "x16" | 31-1/4 " | 47-1/4 " | 1-1/4 " | 39.4 | ||
| TTR30-3018 | 3 "x18" | 28-1/4 " | 46-1/4 " | 1 " | 41.2 | ||
| TTR30-3020 | 3 "x20 ' | 30-1/4 " | 50-1/4 " | 43.8 | |||
| TTR30-3024 | 3 "x24 | 34-1/4 " | 58-1/4 " | 470 | |||
| TTR30-3030 | 3 "x30" | 40-1/4 " | 70-1/4 " | 54.3 | |||
| TTR30-3036 | 3 "x36" | 46-1/4 " | 82-1/4 " | 61.4 | |||
| TTR30-3040 | 3 "x40" | 50-1/4 " | 90-1/4 " | 66.2 | |||
| TTR30-3048 | 3 "x48" | 58-1/4 " | 106-1/4 " | 75.9 | |||
| TTR30-3504 | 1-1/4 " | 3,5 "x4" | 14-1/4 ” | 18-1/4 " | 1/2 "NPT & SAE#8 |
1 " | 26.0 |
| TTR30-3506 | 3,5 "x6" | 16-1/4 " | 22-1/4 " | 27.8 | |||
| TTR30-3508 | 3,5 "x8" | 18-1/4 " | 26-1/4 " | 30.7 | |||
| TTR30-3508-ASAAE | 3,5 "x8" | 20-1/4 " | 28-1/4 " | 9.9 | |||
| TTR30-3510 | 3,5 "x10" | 20-1/4 " | 30-1/4 " | 33.6 | |||
| TTR30-3512 | 3,5 "x12" | 22-1/4 " | 34-1/4 " | 36.6 | |||
| TTR30-3514 | 3,5 "x14" | 24-1/4 " | 38-1/4 " | 39.5 | |||
| TTR30-3516 | 1-1/2 " | 3,5 "x16" | 26-1/4 " | 42-1/4 " | 46.6 | ||
| TTR30-3516-AASA | 3,5 "x16" | 31-1/4 " | 47-1/4 " | 1-1/4 " | 476 | ||
| TTR30-3518 | 3,5 "x18" | 28-1/4 " | 46-1/4 " |
1 " |
50.0 | ||
| TTR30-3520 | 3,5 "x20" | 30-1/4 " | 50-1/4 " | 53.3 | |||
| TTR30-3524 | 3,5 "x24" | 34-1/4 " | 58-1/4 " | 69.2 | |||
| TTR30-3530 | 3,5 "x30" | 40-1/4 " | 70-1/4 " | 679 | |||
| TTR30-3536 | 3,5 "x36" | 46-1/4 " | 82-1/4 " | 77.5 | |||
| TTR30-3540 | 3,5 "x40" | 50-1/4 " | 90-1/4 " | 84.0 | |||
| TTR30-3548 | 3,5 "x48" | 58-1/4 " | 106-1/4 " | 96.8 | |||
| Solmio-sylinteri | |||||||
| Osanumero | Sauva HALKAISIJA |
BORE& Sidos |
MITAT | Satamakoko | Nasta KOKO |
PAINO (Lbs) |
|
| Sisäänvedetty | Pidennetty | ||||||
| TTR30-4004 | 1-1/2 " | 4 "x4" | 14-1/4 " | 18-1/4 " | 1/2 "NPT & SAE#8 |
1 " | 52.0 |
| TTR30-4006 | 4 "x6" | 16-1/4 " | 22-1/4 " | 55.6 | |||
| TTR30-4008 | 4 "x8" | 18-1/4 " | 26-1/4 " | 58.9 | |||
| TTR30-4008-ASAE | 4 "x8" | 20-1/4 " | 28-1/4 " | 18.7 | |||
| TTR30-4010 | 4 "x10" | 20-1/4 " | 30-1/4 " | 62.8 | |||
| TTR30-4012 | 4 "x12" | 22-1/4 " | 34-1/4 " | 66.4 | |||
| TTR30-4014 | 4 "x14" | 24-1/4 " | 38-1/4 " | 70.0 | |||
| TTR30-4016 | 1-3/4 " | 4 "x16" | 26-1/4 " | 42-1/4 " | 84.2 | ||
| TTR30-4016-AASA | 4 "x16" | 31-1/4 " | 47-1/4 " | 1-1/4 " | 85.2 | ||
| TTR30-4018 | 4 "x18" | 28-1/4 " | 46-1/4 " | 1 " | 84.7 | ||
| TTR30-4020 | 4 "x20" | 30-1/4 " | 50-1/4 " | 85.1 | |||
| TTR30-4024 | 4 "x24" | 34-1/4 " | 58-1/4 " | 93.1 | |||
| TTR30-4030 | 2 " | 4 "x30" | 40-1/4 " | 70-1/4 " | 111.6 | ||
| TTR30-4036 | 4 "x36" | 46-1/4 " | 82-1/4 " | 124.8 | |||
| TTR30-4040 | 4 "x40" | 50-1/4 " | 90-1/4 " | 133.6 | |||
| TTR30-4048 | 4 "x48" | 58-1/4 " | 106-1/4 ” | 151.1 | |||
| TTR30-5004 | 2 " | 5 "x4" | 16-1/4 " | 20-1/4 " | 1/2 "NPI & SAE#10 |
1-1/4 " | 59.7 |
| TTR30-5006 | 5 "x6" | 18-1/4 " | 24-1/4 " | 64.9 | |||
| TTR30-5008 | 5 "x8" | 20-1/4 " | 28-1/4 " | 70.2 | |||
| TTR30-5010 | 5 “x10” | 22-1/4 " | 32-1/4 " | 75.4 | |||
| TTR30-5012 | 5 "x12" | 24-1/4 " | 36-1/4 " | 80.7 | |||
| TTR30-5014 | 5 "x14" | 26-1/4 " | 40-1/4 " | 85.9 | |||
| TTR30-5016 | 5 "x16" | 28-1/4 " | 44-1/4 " | 91.2 | |||
| TTR30-5016-AASA | 5 "x16" | 31-1/4 " | 47-1/4 " | 92.9 | |||
| TTR30-5018 | 5 "x18" | 30-1/4 " | 48-1/4 " | 96.4 | |||
| TTR30-5020 | 5 "x20" | 32-1/4 " | 52-1/4 " | 101.7 | |||
| TTR30-5024 | 5 "x24" | 36-1/4 " | 60-1/4 " | 112.1 | |||
| TTR30-5030 | 5 "x30" | 42-1/4 " | 72-1/4 " | 12Z9 | |||
| TTR30-5036 | 5 "x36" | 48-1/4 " | 84-1/4 " | 143.6 | |||
| TTR30-5040 | 5 "x40" | 50-1/4 " | 90-1/4 " | 154.1 | |||
| TTR30-5048 | 5 "x48" | 60-1/4 " | 108-1/4 " | 175.1 | |||
Tavalliset TR-sarjan tie-rod-hydraulisylinterin yksityiskohdat
